Firing Unit EXP128 AKLV16 EN

AK-LV 16 Firing Unit (Exploder) EXP128 – 1 channel

Front side- rack 19" 2U version
Face arriere Rack 19"

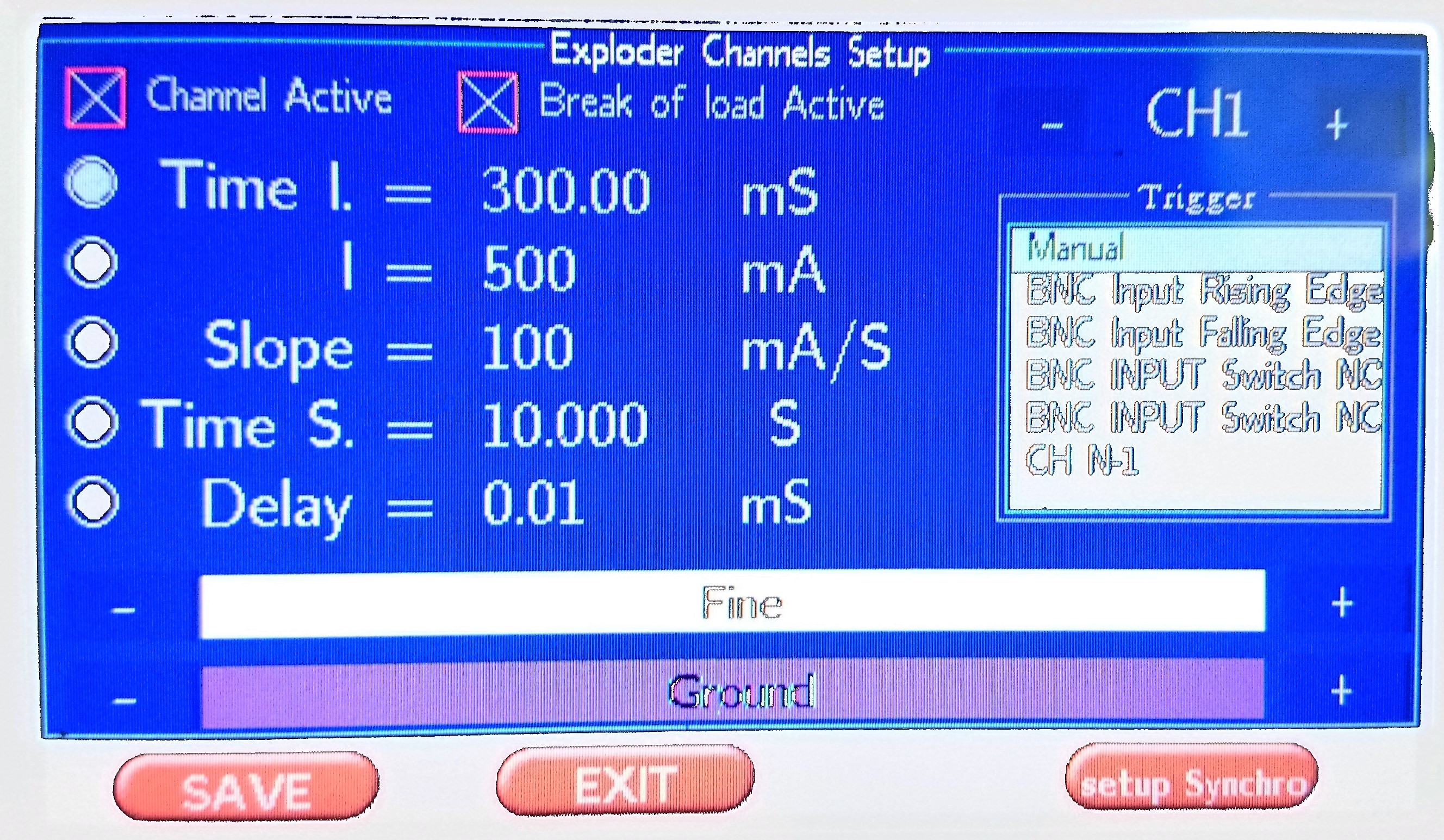

Setup screen
Top bench version

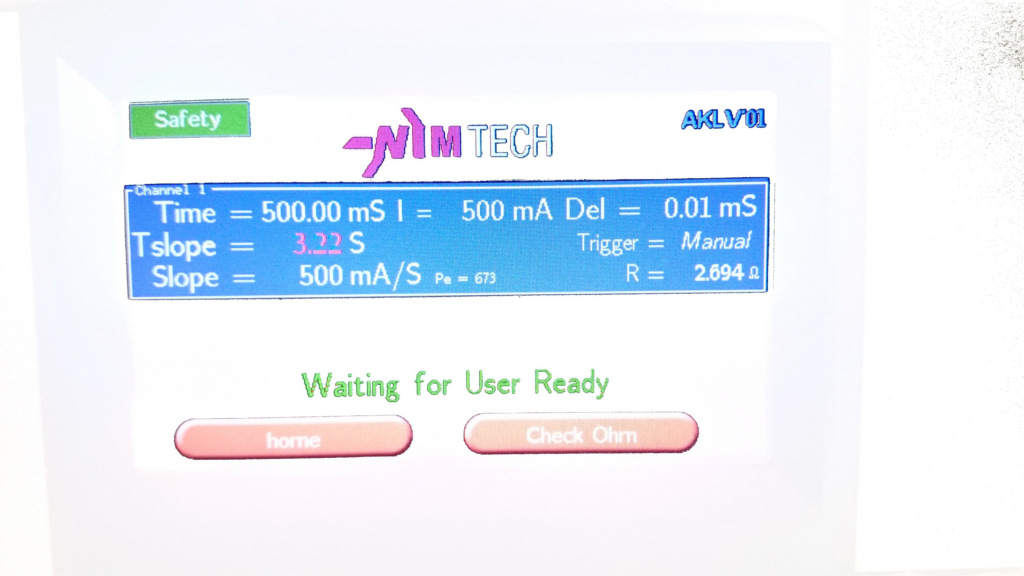

Fire sequence screen

Firing Unit specifically designed to perform initiators tests according to the AK-LV 16 specification.

These fire units (exploder) are designed for testing in laboratories where users safety is at stake.

This range has been specifically designed to perform initiators test according to the AK-LV 16 specification which necessitates to generate a constant current followed by a current ramps

These firing Units are built on an innovative design, using the latest technologies, are fully digital and fully remotely controllable.

  • 200 ns Timing Steps
  • 6 amps per Channel
  • 2 or 4 Channel Outputs
  • Benchtop or Rack Mount Design
  • Easy Programming Interface
  • TTL Sync output to T0
  • Safety Interlock
Main FeaturesInternals

– 1 channel
– 100µS / 100S, 10µs time steps
– 100mA / 5A, 1mA current steps
– Fully remotely controllable via RS232 or Ethernet
– Versions Rack 19 ” 2U or Benchtop
– Programmable constant current, time and current ramp
– Floating firing line (isolated)
– Analog monitoring 0-10V  current and voltage isolated
– Inside data acquisition  V and I (Get back data over Ethernet – under develepment)
– 6 independent trigger modes on each channel
– Configurable functions (input delayed trigger, breaking load detection, …)

– Integrated security pyrotechnical Ohmmeter
– Constant current pulse and ramp generator
– Discharge Circuits (ESD) of firing lines
– Safety devices: key, push-protected, input for external security door contacts / barriers
– Safety circuit insulation off the line of fire safety conditions
– Data acquisition Internal U and I (recovery of data over Ethernet)

– Testing Laboratories
– Bruceton Tests
– Characterization of initiators
